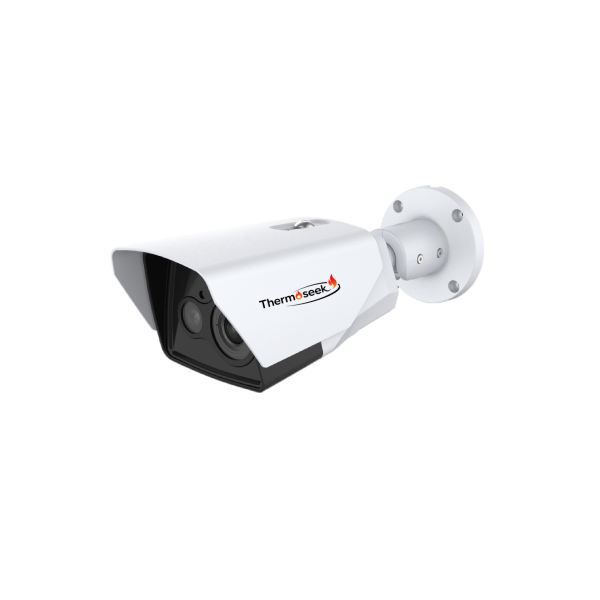

HM2系列 户外 IP 双光谱 子弹型摄像机
周界防御
周界防御系统在保护高危区域、商业地产以及工厂设施(无论位于城市还是偏远地区)方面扮演着至关重要的角色。ThermoSeek提供的是一种可靠、高效且可视化的系统，它能显著降低潜在威胁。
解决方案优势
双光谱
电动聚焦功能
图像融合
多目标识别
高图像质量:12mVOx热传感器，4MP1/2.8"CMOS可见光传感器;
·新一代AI行为分析算法:线穿越、入侵、区域进入与退出;
热成像智能功能:多目标类型检测;
·高级火灾/烟雾检测算法;
·优秀的图像增强:AGC、IDE·用户友好平台:标准ONVIF协议，NX系统，快速兼容第三方平台;
卓越的环境适应性:适用于极端天气，包括黑暗、雨、雾、雾霾等;
支持完全自定义。
周界防御系统在保护高危区域、商业地产以及工厂设施(无论位于城市还是偏远地区)方面扮演着至关重要的角色。ThermoSeek提供的是一种可靠、高效且可视化的系统，它能显著降低潜在威胁。
解决方案优势
双光谱
电动聚焦功能
图像融合
多目标识别
高图像质量:12mVOx热传感器，4MP1/2.8"CMOS可见光传感器;
·新一代AI行为分析算法:线穿越、入侵、区域进入与退出;
热成像智能功能:多目标类型检测;
·高级火灾/烟雾检测算法;
·优秀的图像增强:AGC、IDE·用户友好平台:标准ONVIF协议，NX系统，快速兼容第三方平台;
卓越的环境适应性:适用于极端天气，包括黑暗、雨、雾、雾霾等;
支持完全自定义。
尺寸：
| Thermal Module | HM2 |
| Detector | VOx Uncooled FPA |
| Resolution/Pixel pitch | 256x192/12µm |
| NETD | <50mK@ 25°C |
| Spectral range | 8-14µm |
| Focus Method | Fixed lens |
| Focal Length | 2mm, 3.6mm, 7mm, 10mm |
| FOV | 90° x65.9°, 50° x37°, 24.8° x18.6°, 17° x13° |
| Image adjustment | Auto/Manual adjustment for contrast ratio & brightness & acutance |
| Uniformity correction | Auto/Manual shutter, background correction |
| Optical Module | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 2560(H) x 1440(V) |
| Focal Length | 3mm, 4mm, 6mm, 8mm |
| FOV | 106.7° x56.2°, 87.5° x44.4°, 54° x29°, 41.4° x23.9° |
| IR Range | 30m |
| Image Effect | |
| Thermal image process | AGC, IDE |
| Image fusion | Support |
| Color Palette | Optional 9 color palettes(rust, rainbow, white/black, etc.) |
| Smart Function | |
| VCA | 4 VCA types (motion detection, cross line, intrusion, area entry and exit) |
| Fire Detection | Support |
| Sound and light alarm | Add speakers and embedded flashing lights alarm |
| Temperature Measurement | 3 temperature measurement rule types (points, areas, lines.) |
| Temperature Range | -20° C~+135° C |
| Temperature Accuracy | ± 8 °C (± 14.4 °F) |
| Video and Audio | |
| Video Compression | H.264 / H.265 |
| Main-Stream (Visible) | 2560x1440, 1920x1080, 1280x720 |
| Sub-stream (Visible) | 1280x720, 768x576, 640x480, 384x288 |
| Main-Stream (Thermal) | 384x288, 256x192 |
| Audio | Sound pick-up |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, DNS, NTP, RTSP, TCP, UDP, DHCP |
| API | ISAPI, SDK, third-party management platform, ONVIF |
| Common function | Heartbeat, password protection, multi-user access control |
| Security | Support password protection, bonding MAC ID, IP filtration |
| Simultaneous Live View | 10 channels |
| User/Host level | Up to 9 users, 3 levels: Administrator, Operator, General |
| Web Browser | Google Kernel Browser, Edge |
| Interface | |
| Alarm | 1x ch input, 1x ch output |
| Serial port | 1x ch RS485 |
| Communication Interface | RJ45 10 M/100 M self-adaptive Ethernet |
| Storage | Embedded EMMC 16GB |
| General | |
| Web Client Language | English |
| Power Supply | DC 12V/POE |
| Power Consumption | 3W(w/o IR) |
| Work Temperature/Humidity | -20° C~+60° C (customizated -40°C), <90%RH |
| Storage temperature | -45° C ~ +75° C |
| Protection | IP67 |
| Reliability | TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimension | 271mm*93mm*84mm |
| Weight | <1.2kg |
